Over 2000 Cycles High Output 5S RV Lithium Ion Battery

Brand Name : Huaxing

Model Number : HX12100

Certification : CE

Place of Origin : China

MOQ : 10

Price : US$270-320 per pks

Supply Ability : 100 pks per day

Delivery Time : 20-25 days

Packaging Details : 1 pks per UN carton

Material : LiFePo4/Graphite

Nominal Voltage : 12.8V

Nominal Capacity : 100Ah

Max Constant Current : 100A

Max Charge Voltage : 14.6V

Cut Off Voltage : 10V

Plastic case : 328±1*171±1*215±1mm

Weight : 13Kg

Cycles Life : 2000 cycles

Warranty : 2 years

Contact Now

Over 2000 Cycles High Output 12v 100ah RV Lithium Ion Battery With BMS For Motorhome/RV/Camper

Products Features

Reliable,power lithium batteries

Wide applications:RV/Motorhome,Golf cart,Marine,Solar system

Light weight

Environmental friendly

12V 100AH Lithium ion battery specification

No.

Item

General Parameter

1

Model

HX12100

2

Standard Capacity

100AH

3

Rated Voltage

12.8V

4

Max Charge Voltage

14.6V

5

Discharge Cut Off Voltage

10V

6

Standard Charge Current

50A

7

Max Continuous Discharge Current

100A

8

Peak Instant Discharge Current

200A with 5S

9

Dimension(ABS)

328±1*171±1*215±1mm

10

Total weight(Approx.)

13kg

11

Operate Temperature

-20°C~60°C

12

Built-in BMS

YES

13

Cycle Times

2000 cycles

12V 100AH Lithium ion battery BMS specification

Item

Content

Criterion

Charge and Discharge Port

Shared

Communication

None

Parallel Connection

None

Serial Connection

Max. 4pcs

Normal Current

Charge Current

≤100A

Discharge Current

≤100A

Over charge Protection

Over charge detection voltage

3.75±0.05V

Over charge detection delay time

~1000mS

Over charge release voltage

3.55±0.05V

Over charge release condition

Cut off charger

Maximum charge voltage

3.65±0.05V

Over discharge protection

Over discharge detection voltage

2.20V±0.10V

Over discharge detection delay time

200ms

Over discharge release voltage

2.4V±0.10V

Discharge over current protection

Discharge over current detection current

330±30A

Discharge over current detection delay time

~100±50ms

Discharge over current release condition

Cut load

Short circuit protection

YES

Main Applications:

  • RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
  • Telecommunication, back-up power supply, UPS
  • Storage energy for solar system, solar street, home energy storage and so on

Over 2000 Cycles High Output 5S RV Lithium Ion Battery

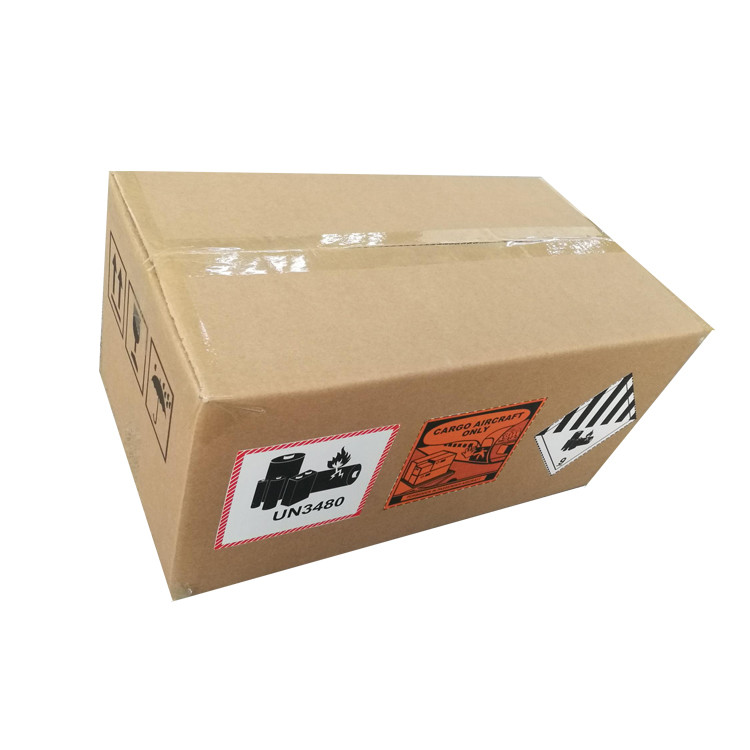

Package Information:

DESCRIPTION

QUANTITY/CTN

PACKAGE

GROSS WEIGHT

NET WEIGHT

DIMS(m³)

(PCS)

CARTONS SIZE(MM)

(KG)

(KG)

12V100AH LiFePo4 Battery

1

460*250*220

14

13

0.03

20ft container can load 600 pks 12V100Ah lithium battery pack

40ft container can load 1200 pks 12V100Ah lithium battery pack
